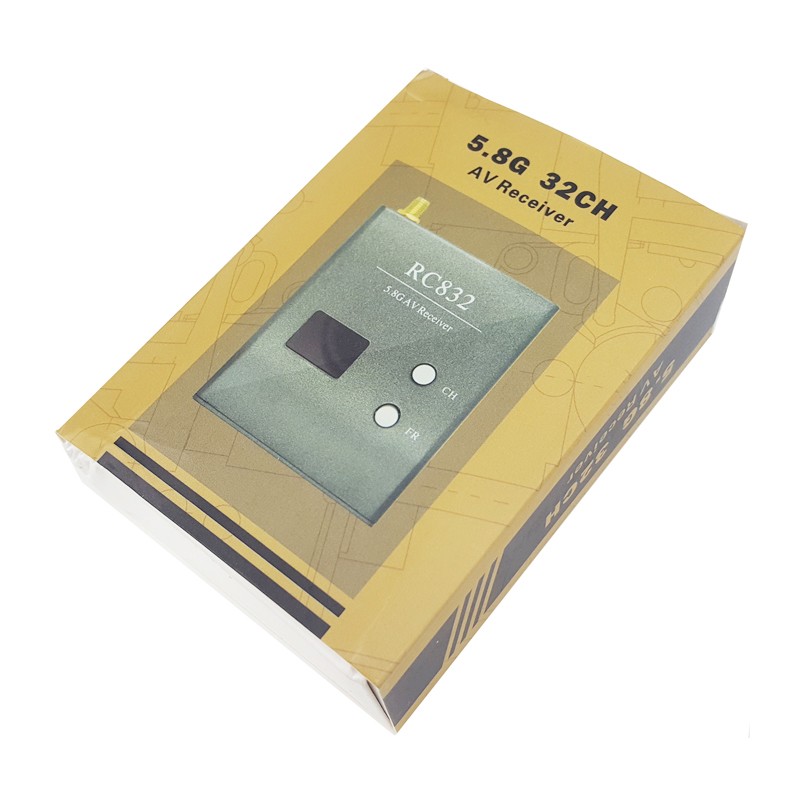

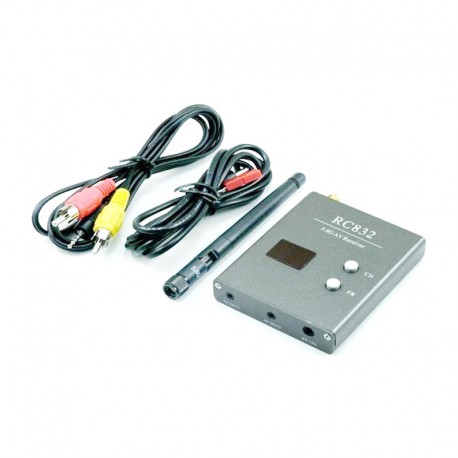

SkyZone RC832 5.8 GHz 32Ch Receiver With A/V and Power Cables


New product

SkyZone has forged a reputation of quality and reliability and has been tested and developed by FPV pilots for FPV pilots.

More details

$25.00 tax excl.

  • The RC832 Receiver is nice and small in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two button interface as the TS832 Transmitter making channel swapping a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set of goggles or maybe a DVR to record your flight, for when your significant other asks where you were for the last 4 hours. Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with mini JST. It just doesn’t get any simpler than this.

    *For best range and video link stability we recommend using the SkyZone 5.8GHz Cloud Spirit circular-polarized Antenna Set (RP-SMA) available below in the accessory’s tab

    • 32 channels: Cover A, B, E bands and F bands
    • Two switching buttons for the band and channel
    • Two digits display for  the band and channel
    • Power off memory for last channel and band
    • dual Independent video and audio signal outputs


    • Video format supported: NTSC/PAL
    • Antenna connection: RP-SMA, jack
    • Power input: 12V
    • Working current: 200mA max
    • Antenna impedance: 50Ω
    • Antenna gain: 2db
    • Rx sensitivity -90dBm
    • Video impedance: 75Ω
    • Video format: NTSC/PAL auto
    • Dimension: 80x 65 x15mm
    • Weight: 85g

    Frequency range:
    FR1 5865,5845,5825,5805,5785,5765,5745,5725
    FR2 5733,5752,5771,5790,5809,5828,5847,5866
    FR3 5707,5685,5665,5645,5885,5905,5925,5945
    FR4 5740,5760,5780,5800,5820,5840,5860,5880
