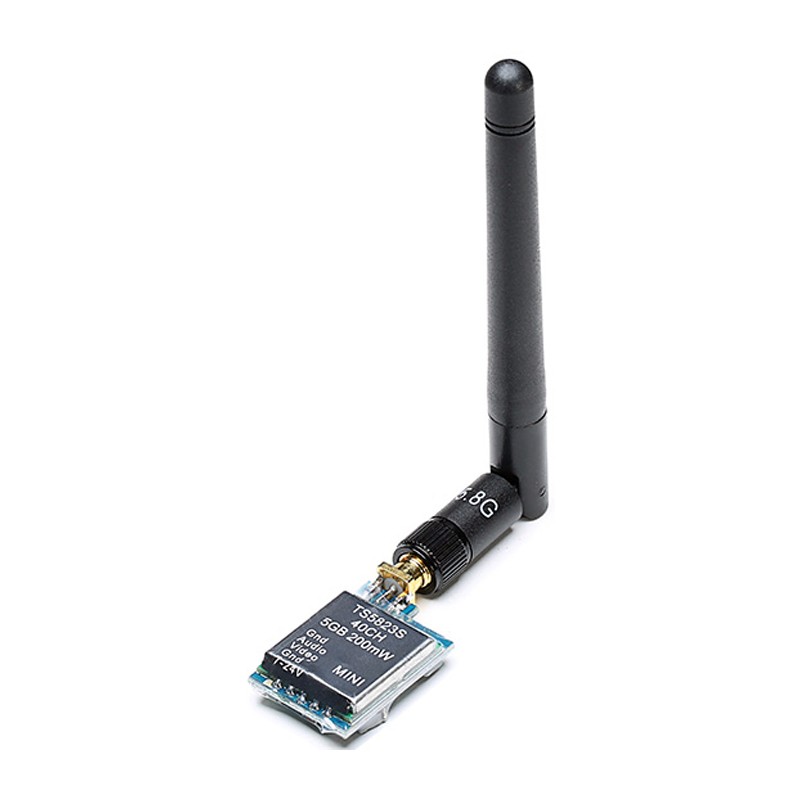

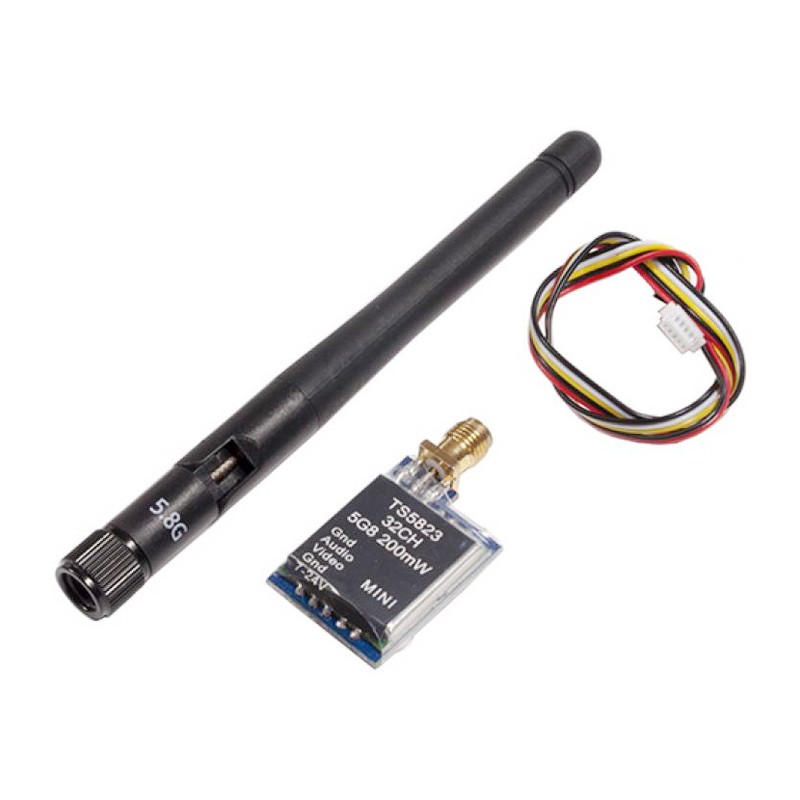

SkyZone TS5823 5.8GHz 32CH A/V 200mW Mini Transmitter (v2)

SKY-TS5832

New product

The SkyZone TS5823 transmitter packs 200mW of ultra clean 5.8GHz power in a micro sized video/audio transmitter! A must have for those looking to save size and weight while still getting good performance. The TS5823 is transmitting a full range of 32 channels and only weighs 10g.

More details

$23.00 tax excl.

  • It’s perfect for a wide range of aircraft, especially small models and 350 size multi-rotors such as Quanum Nova, DJI Phantom, QR X350 and more!


    Features:

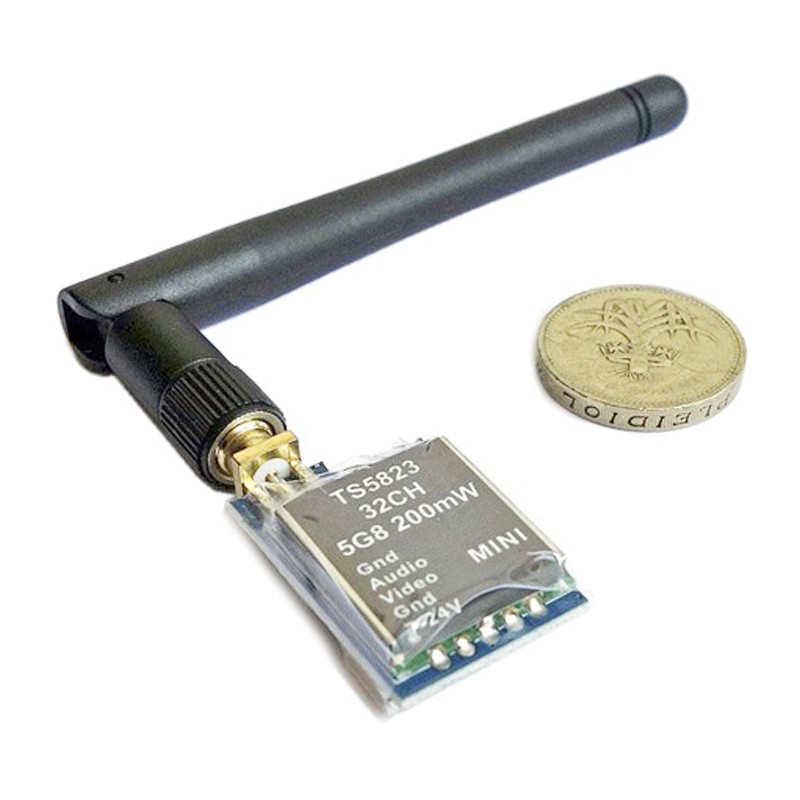

    • Micro sized and light weight - perfect for use with small models
    • 32 channels: Cover A, B, E bands and F bands
    • Transmitter frequency: 5645-5945MHz with 200mW power output
    • Transmitting distance > ~1500m (open area)

    • Modulate: Wideband FM Modulate
    • Video Format: NTSC/PAL
    • Output Impedance: 50 Ohm
    • Output Power: 23~24dBm
    • Channel: 32CH
    • Operating Voltage: 7V~24V
    • Supply Current: 190mA
    • Operating Temperature: -10~85 Video Band Width : 0~8.0 MHz
    • Audio Carrier Frequency: 6.5MHz
    • Video Input Level: 0.8~1.2 Vp-p
    • Video Input Impedance: 75 Ohm
    • Audio Input Level: 0.5~2.0 Vp-p
    • Audio Input Impedance: 10K Ohm
    • Connector: RP-SMA
    • Dimension: 40mm x 23mm x 8mm
    • Weight: 8g (without antenna)

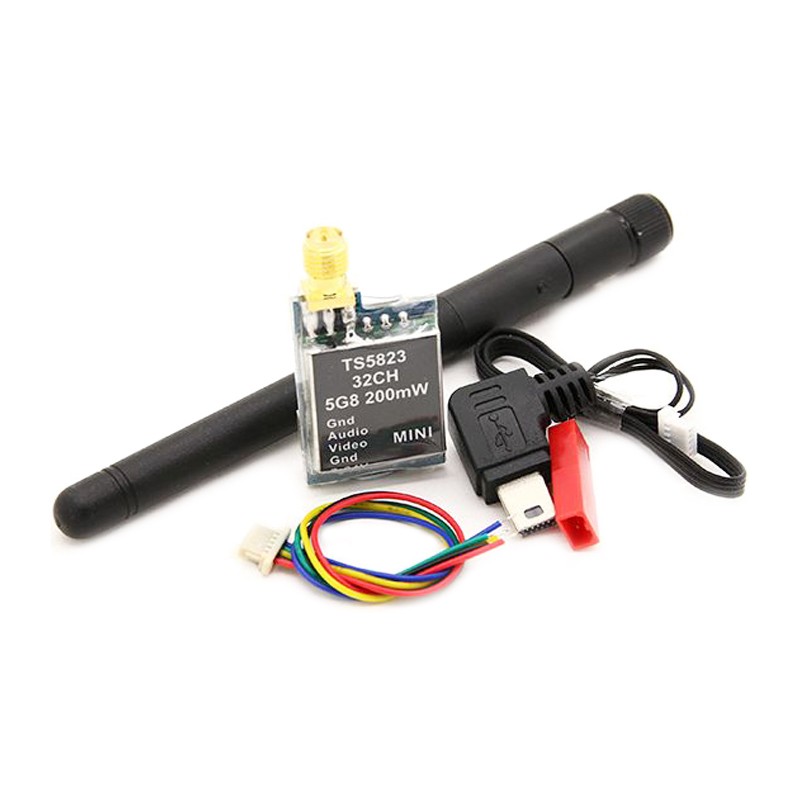

    Included:

    • TS5823 5.GHz 200mW 32CH A/V transmitter
    • GoPRO USB to A/V cable (for using GoPRO as A/V input)
    • Standard wire lead
