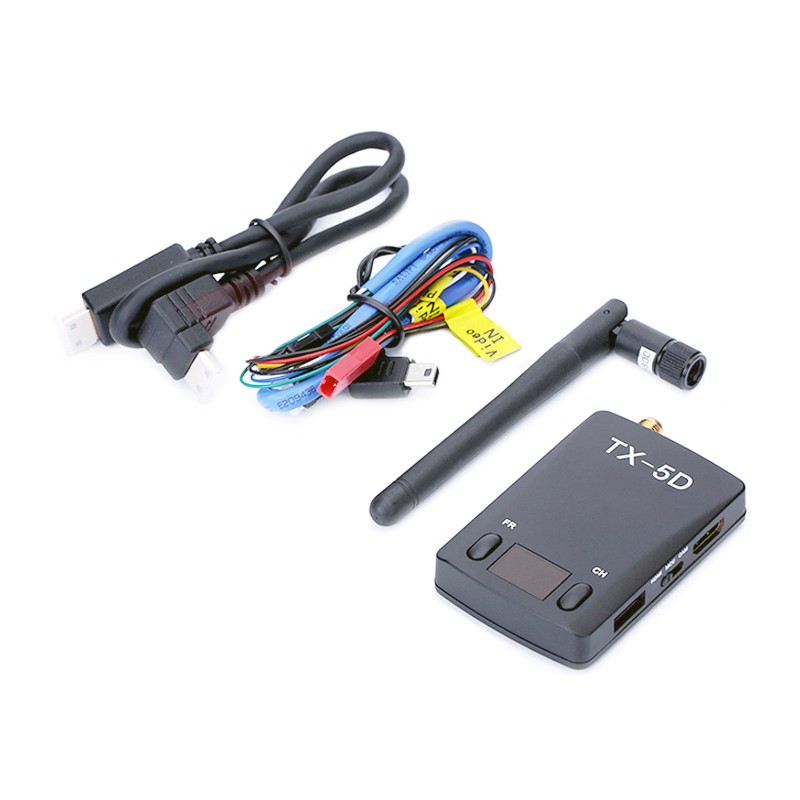

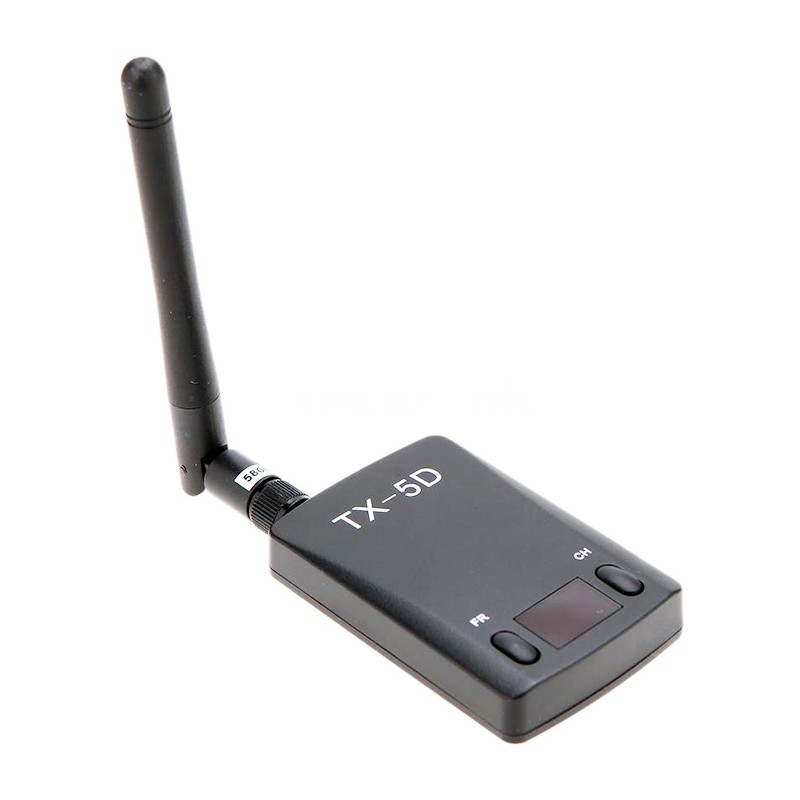

SkyZone TX-5D Dual Input HDMI/Analog 600mW 5.8GHz Video Transmitter and Video Switch


New product

The New SkyZone TX-5D is a very unique FPV product, geared for multi camera users for aerial cinematography and UAV applications.

The TX-5D supports dual A/V inputs, one being HDMI. The two inputs can be switched live via an RC transmitter, this allows the operator to fly FPV with a fixed analog camera, and then switch to the HDMI output of a gimbal stabilized camera for video work.

More details

$76.00 tax excl.

  • The TX-5D can also remotely switch and synchronize the video channels via an RC switch when paired with some Skyzone receivers, this lets you quickly jump to a new channel live and in the air if you run into interference or video loss.

    The TX-5D supports the full 32ch range of the 5.8GHz band at 600mW for a wide range of compatibility and applications.

    • 32 Channel 5.8GHz
    • 600mW TX power
    • RC controlled video switch between the two video inputs
    • RC controlled live channel sync and changing
    • HDMI and analog video input
    • 7~24V input power


    • Item Name: Transmitter Module
    • Item No.: TX-5D
    • Working frequency: 5.8Ghz
    • Frequency point: 32
    • Power input: 7.4~16V (3S Lipo suggested)
    • Working current: 220mA at 12V
    • Video band width: 8MHz
    • Audio coding: 6.5MHz
    • Antenna gain: 2dbm
    • Dimension: 63x42x12mm (not including the antenna)
    • Support Input: HDMI AV Audio

    Frequency Range:

    FR1 5865,5845,5825,5805,5785,5765,5745,5725
    FR2 5733,5752,5771,5790,5809,5828,5847,5866
    FR3 5707,5685,5665,5645,5885,5905,5925,5945
    FR4 5740,5760,5780,5800,5820,5840,5860,5880
