Aomway 11dbi 7 Turn 5.8GHz Helical Antenna (RHCP) (SMA)

New product

Aomway released their new 5.8GHz, 7 Turn 11dbi tuned reflector base helical antennas.

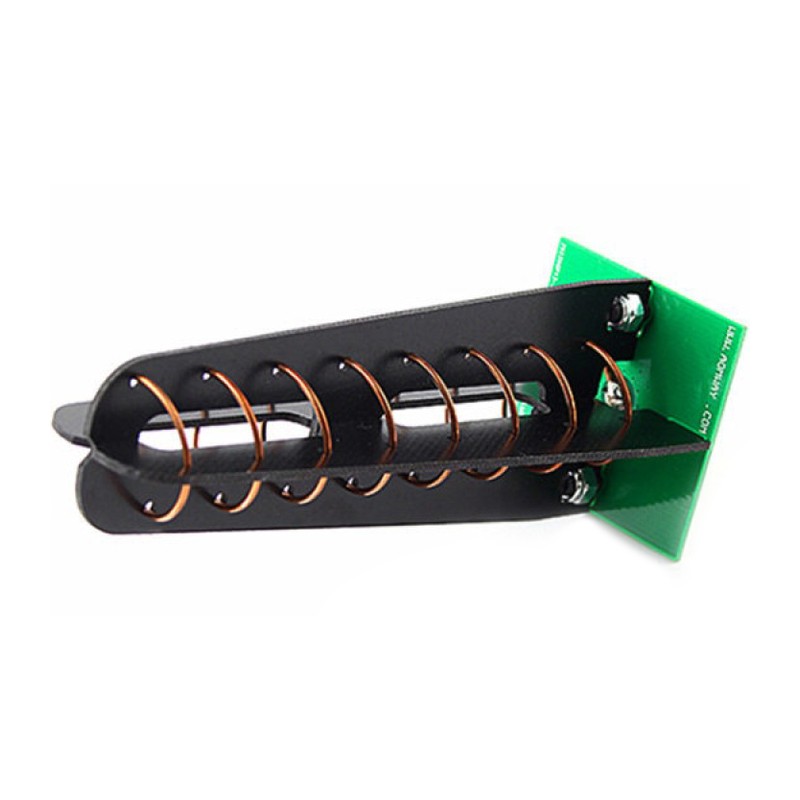

The Aomway 7 is supported by a precision cut glass fiber frame and PCB tuned reflector. The antenna includes a flexible coaxial adapter letting you achieve virtually any installation angle of your setup.

More details

$21.00 tax excl.

  • Helical antennas are designed for maximum range, having a tighter focus than an Omni or patch style antenna. Helical antennas also have a broader “tune” range and have great gain across the entire 5.8GHz band.

    Note: Helical antennas have a narrower focus for further range, so it's recommended to be used in a diversity system and or antenna tracker setup for the ultimate in video lock and range.


    • Perfectly compatible with all 32ch of the 5.8GHz range
    • All frequency channel standing wave less 1.3
    • PCB board as reflection board, effectively improves antenna gain
    • High self-recovery function
    • Supported coil

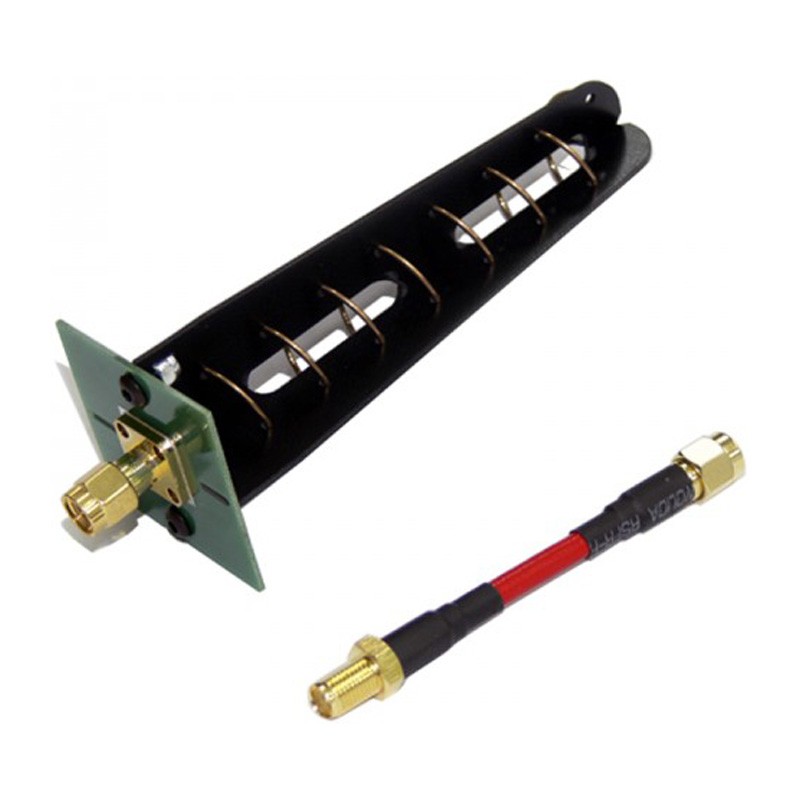

    • Flexible Adapter


    • Bandwidth: 5645-5945Mhz
    • Gain: 11dbi
    • Cross polar rejection: >10dbi

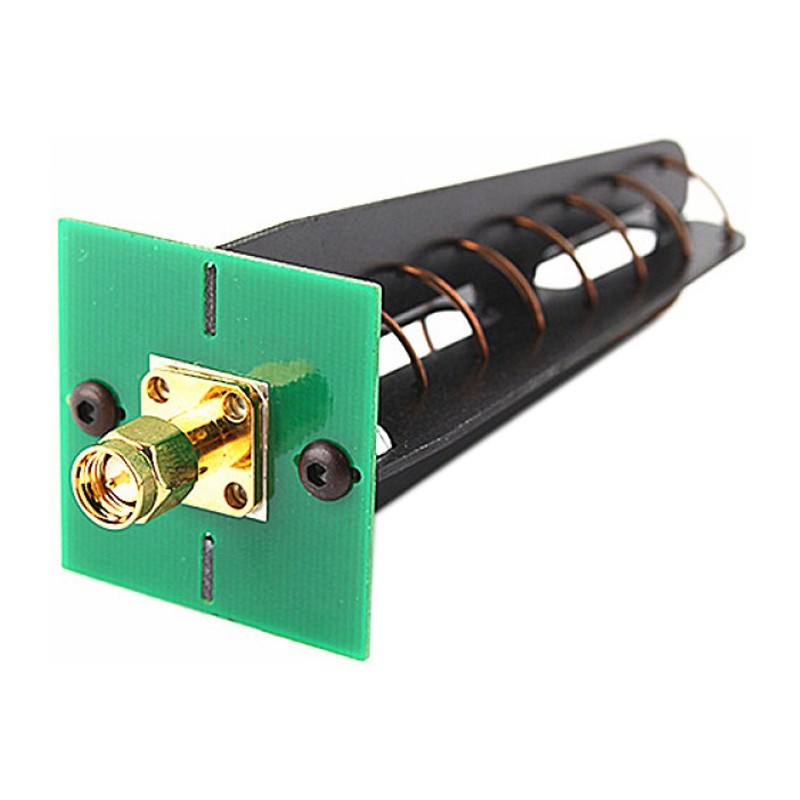

    • Connection: SMA
    • Polarity: Right Circular Polarization
    • Weight: 10g
    • Impedance: 50ohm
