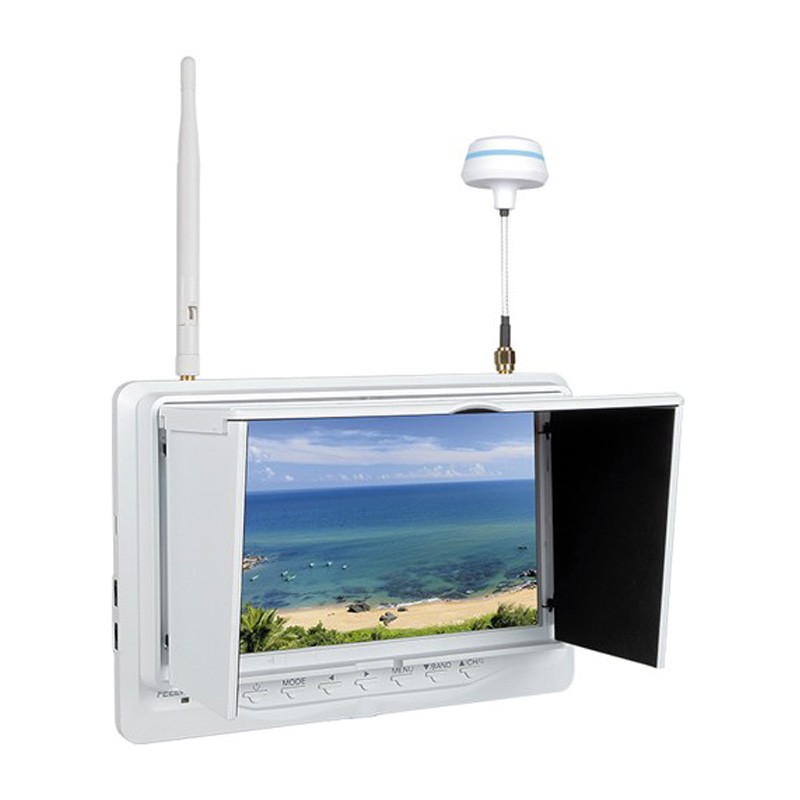

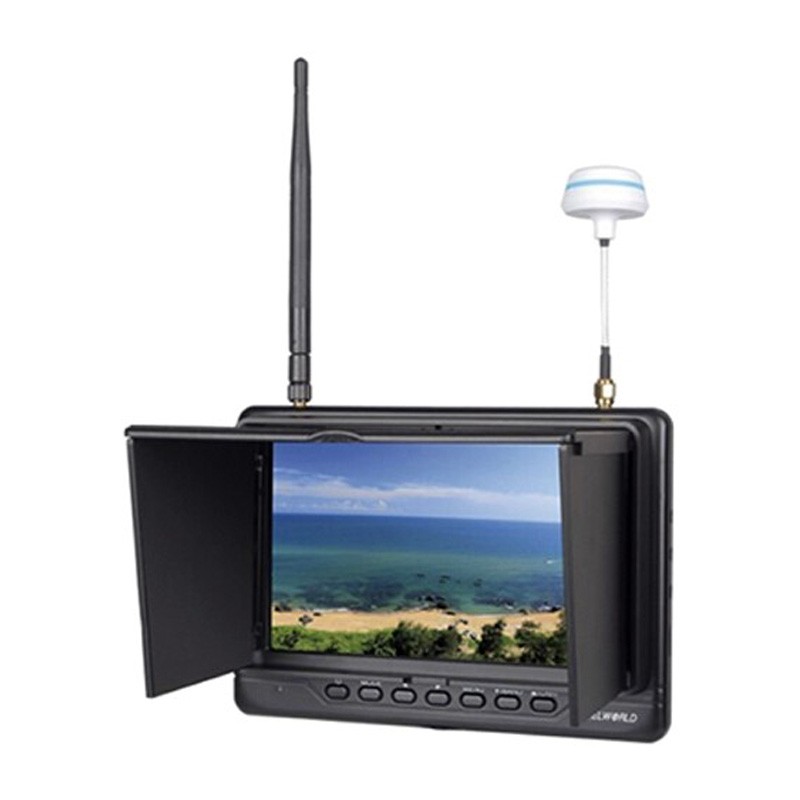

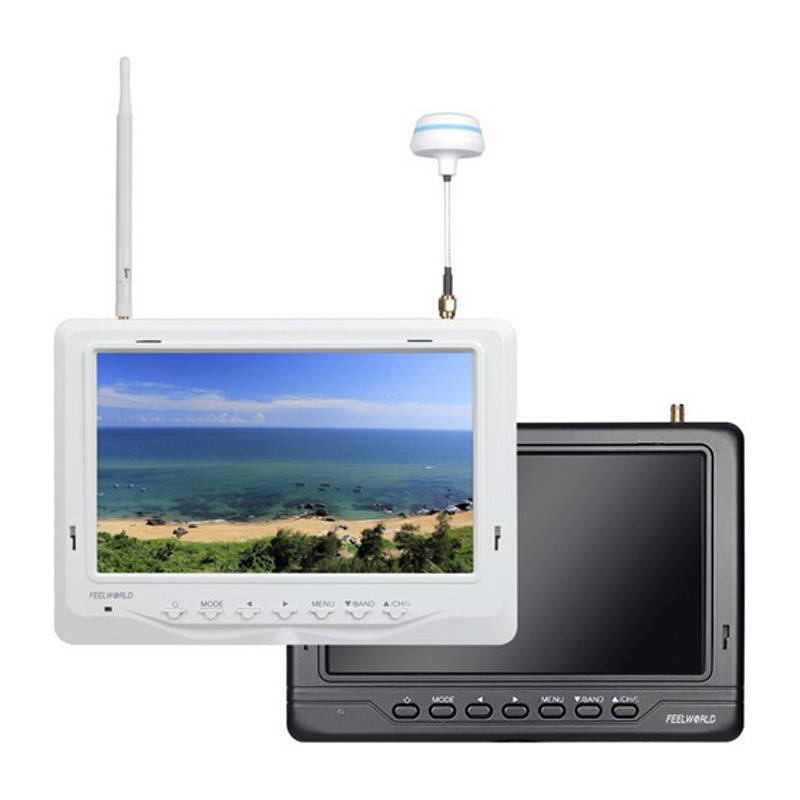

Feelworld FPV-718 5.8G 7" FPV Monitor with Built-in Dual 32Ch Diversity Receivers (Black/White)

> >>Feelworld FPV-718 5.8G 7" FPV Monitor with Built-in Dual 32Ch Diversity Receivers (Black/White)
Feelworld FPV-718 5.8G 7" FPV Monitor with Built-in Dual 32Ch Diversity Receivers (Black/White) View larger
Previous Next

Online only

Feelworld FPV-718 5.8G 7" FPV Monitor with Built-in Dual 32Ch Diversity Receivers (Black/White)

New product

Feelworld FPV718 5.8G 7" monitor has ultra slim housing and light weight. It comes with a 2200mah built-in battery.

The LED display is super bright, high contrast and no blue screen. It is 5.8GHZ 32 channels, compatible with DJI, Immersion RC and the Fatshark.

More details

This product is no longer in stock

$235.00 tax excl.

  • Features

    1. 5.8G broadband FM, Audio, Video synchronal receiving
    2. Built-in 7.4V 2200mah battery
    3. Highlight: 500cd/m²
    4. Low power consumption: 5V 170mAh
    5. High sensibility receiver: -90dBm
    6. Input Signal: Mini HDMI, AV, RF
    7. Output Signal: AV, 3.5mm Earphone Jack
    8. High stability of built-in Frequency-modulated Phase-locked Loop
    9. Lower hybrid wave leak: meet the requirements of CE, FCC
    10. Output the analog audio video signal directly
    11. Dual 32 channel receiver
    12. Auto scan 5.8G frequency by button
    13. With HDMI input, support up to 1080p
    14. Flexible folding plastic sunshade hood


    Package Includes:

    • 1 x 7 inch Hd FPV Monitor
    • 1 x Sunshade
    • 1 x 2200Mah Built-in Battery
    • 2 x Antenna
    • 1 x 3.5mm AV cable
    • 1 x HDMI converter: mini standard
    • 1 x Instruction Manual


    Designed for FPV Application.

    Model: FPV-769A
    Resolution:                    800X480
    Brightness: 400cd/m²
    Contrast: 500:1
    Aspect ratio: 16:9
    Backlight: LED
    Inputs: RCA Video,Audio, DC power
    Surface Treatment: Anti-Glare
    Support video format: NTSC M, PAL M, NTSC BG, PAL N, NTSC DK, PAL DK, PAL I and SECAM BG.
    Speaker Built in, 1 Watt
    Viewing Angle: 70°/70°,50°/70° (L/R,U/D)
    Power Consumption: ≤8W
    Input Voltage: DC 6-12V
    Working Temperature: -10°C~55°C
    Storage Temperature: -20°C~65°C
    Install Way: "1/4"-20 Thread and VESA mounting socket(75mm)
    Unit Size: 182L × 127W × 30H(mm)
    Unit Weight: 360g
