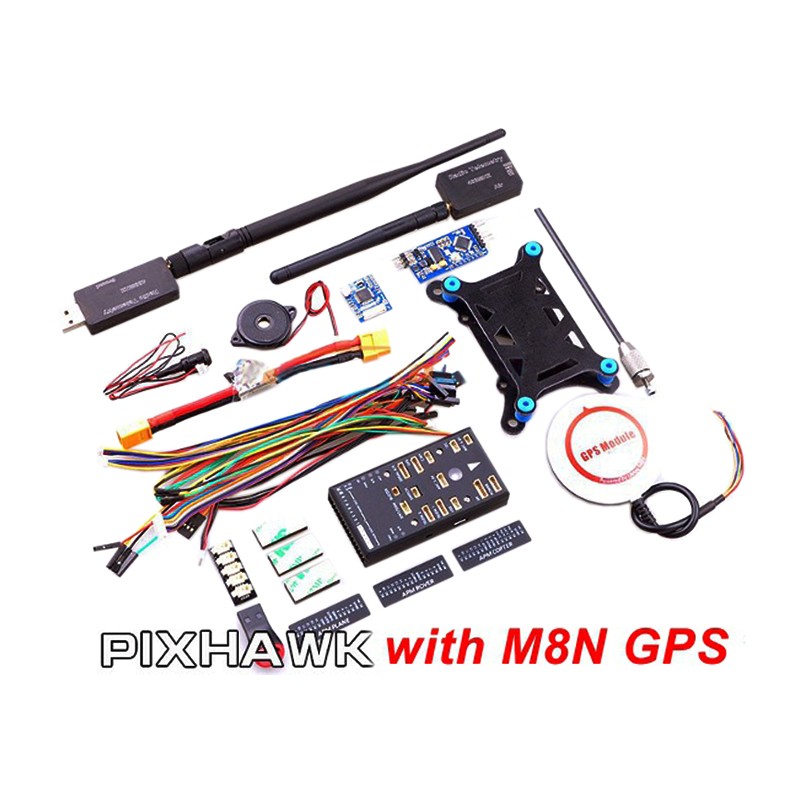

Px4 Pixhawk V2.4.5 32Bits Flight Controller come with Ublox M8N 6H GPS View larger

Online only

Px4 Pixhawk V2.4.5 32Bits Flight Controller come with Ublox M8N 6H GPS

New product

Px4 Pixhawk V2.4.5 32Bits Flight Controller with Ublox M8N 6H GPS +MINI OSD +3DR Radio

More details

$244.00 tax excl.

  • Px4 Pixhawk V2.4.5 32Bits Open Source Flight Controller w/External LED for RC Airplanes

    Improvements on V2.4.3

    • V2.4.5 PCB board
    • Redeveloped and optimized circuit without changing components
    • Could use Official MissionPlanner, ECLIPSE firmware upgrade


    • 168 MHz / 252 MIPS Cortex-M4F
    • 14 PWM / Servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)
    • Abundant connectivity options for additional peripherals (UART, I2C, CAN)
    • Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply (fixed-wing use)
    • Backup system integrates mixing, providing consistent autopilot and manual override mixing modes (fixed wing use)
    • Redundant power supply inputs and automatic failover
    • External safety switch
    • Multicolor LED main visual indicator
    • High-power, multi-tone piezo audio indicator
    • MicroSD card for high-rate logging over extended periods of time


    • 32bit STM32F427 Cortex M4 core with FPU
    • 168 MHz
    • 256 KB RAM
    • 2 MB Flash
    • 32 bit STM32F103 failsafe co-processor

    • ST Micro L3GD20H 16 bit gyroscope
    • ST Micro LSM303D 14 bit accelerometer / magnetometer
    • MEAS MS5611 barometer

    • 5x UART (serial ports), one high-power capable, 2x with HW flow control
    • 2x CAN (one with internal 3.3V transceiver, one on expansion connector)
    • Spektrum DSM / DSM2 / DSM-X® Satellite compatible input
    • Futaba S.BUS® compatible input and output
    • PPM sum signal input
    • RSSI (PWM or voltage) input
    • I2C
    • SPI
    • 3.3 and 6.6V ADC inputs
    • Internal microUSB port and external microUSB port extension

    Power System and Protection
    • Ideal diode controller with automatic failover
    • Servo rail high-power (max. 10V) and high-current (10A+) ready
    • All peripheral outputs over-current protected, all inputs ESD protected


    • 1* PX4 Pixhawk V2.4.5 32Bits Flight Controller
    • 1* Ublox M8N 6H GPS
    • 1* MAVLink-OSD V2.0
    • 1* Power Module
    • 1* 3DR Radio Telemetry Kit 915MHZ
    • 1* Cables set
    • 1* Shock Absorber
