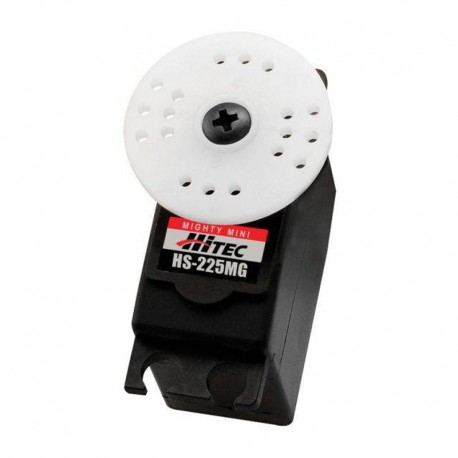

Hitec HS-225MG Metal Gear Mighty Mini Servo

> >>Hitec HS-225MG Metal Gear Mighty Mini Servo
Hitec HS-225MG Metal Gear Mighty Mini Servo View larger

Online only

Hitec HS-225MG Metal Gear Mighty Mini Servo

32225S

New product

The analog HS-225MG represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225MG high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.

More details

$25.00 tax excl.

  • Features:

    • Full Size Performance in a Mini Package
    • Durable Metal Gears
    • Top Ball Bearings
    • Perfect for Applications Requiring a Small, Lightweight, High Speed, High Torque Servo

    Accessories:

    • Metal Gear Set
    • Metal / Plastic 1st Gear Set
    • Plastic Case Set
    • Applicable Horns


    Performance Specifications

    Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
    Speed (Second @ 60°) 0.14 ~ 0.11
    Maximum Torque Range oz. / in. 54 ~ 67
    Maximum Torque Range kg. / cm. 3.9 ~ 4.8
    Current Draw at Idle 8 mA
    No Load Operating Current Draw 300 mA
    Stall Current Draw 1,200 mA
    Dead Band Width 8 µs
    Physical Specifications

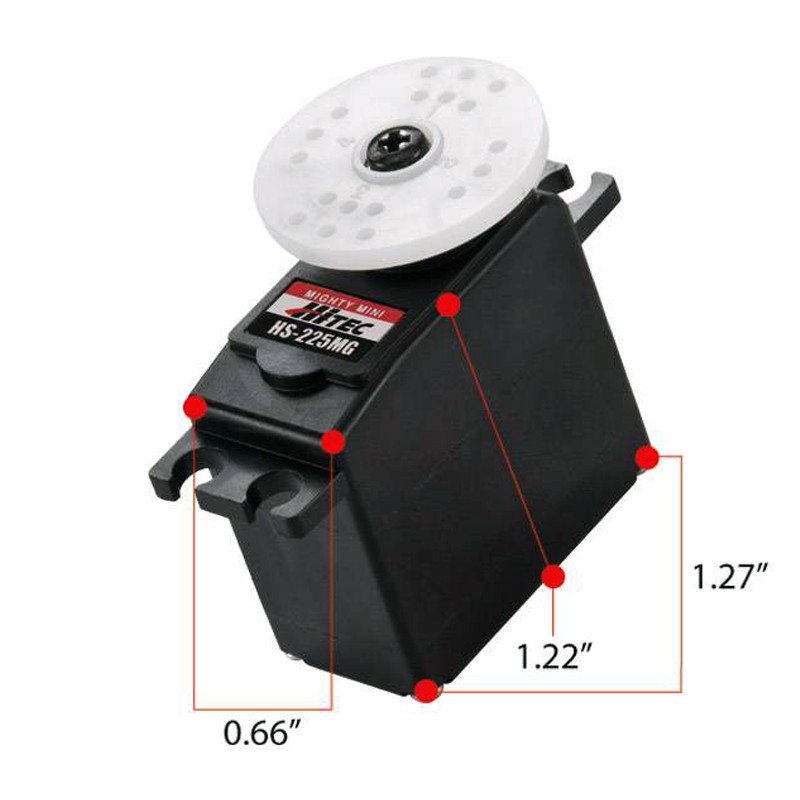

    Dimensions (Inches) 1.27 x 0.66 x 1.22
    Dimensions (Metric) 32.4 x 16.8 x 31.0
    Weight (Ounces) 1.09
    Weight (Gram) 31.0
    Circuit Type HT7003 Analog SMT
    Motor Type 3 Pole Metal Brush Ferrite
    Gear Material Metal
    Bearing Type Top Ball Bearing
    Output Shaft (type / Ømm) Standard 24
    Case Material Plastic
    Dust / Water Resistance N / A
    Connector Gauge (AWG) / Strand Count 25 / 40
