O.S. OCA-150 50Amp 25V Brushless ESC


New product

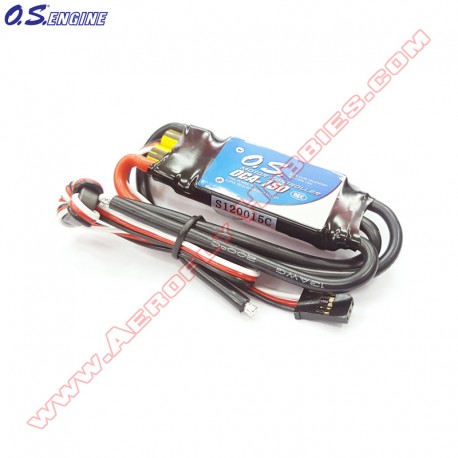

This is the O.S. OCA-150 50Amp 25V Brushless ESC for Airplanes/Helicopters.

More details

$120.00 tax excl.

  • Features:

    • O.S. quality is now available in a brushless speed control
    • The perfect complement to O.S. brushless motors!
    • Cooler running with the latest generation FET
    • Automatic battery cell number recognition
    • Start protection prevents accidental starting of the motor
    • Low-voltage cutoff stops the motor before voltage levels reach the point where control is lost and cell damage can occur
    • No-signal cutoff switches the ESC off when signal from the transmitter is not received
    • Overheat protection restricts output when temperatures reach high levels
    • Anti-spark function reduces sparks that can occur when connecting the battery
    • BEC output, so power to the receiver is supplied from the ESC



    • Dimensions: 1.97x1.0x0.4" (50x25x10mm)
    • Weight: 1.8 oz (52g)
    • Functions: Forward/Stop/Brake/Reverse
    • Load Current (Peak): 50A (60A/5 seconds)
    • Cell Number: 6-18 NiCd/NiMH; 2-6 LiPo
    • PWM Frequency: 32kHz
    • Recommended O.S. Brushless Motors: OMA3820-1200/OMA3825-750/OMA3815-1000/OMA3810-1050
