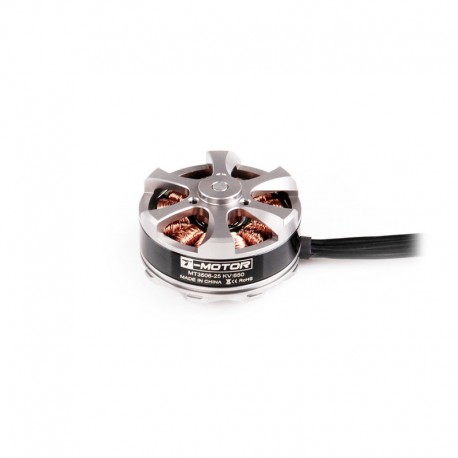

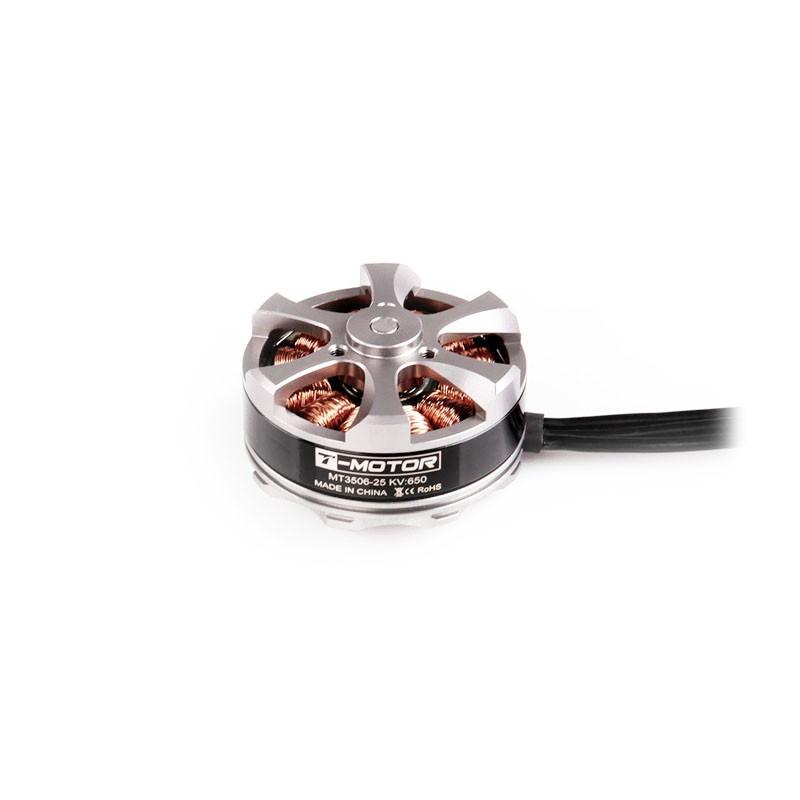

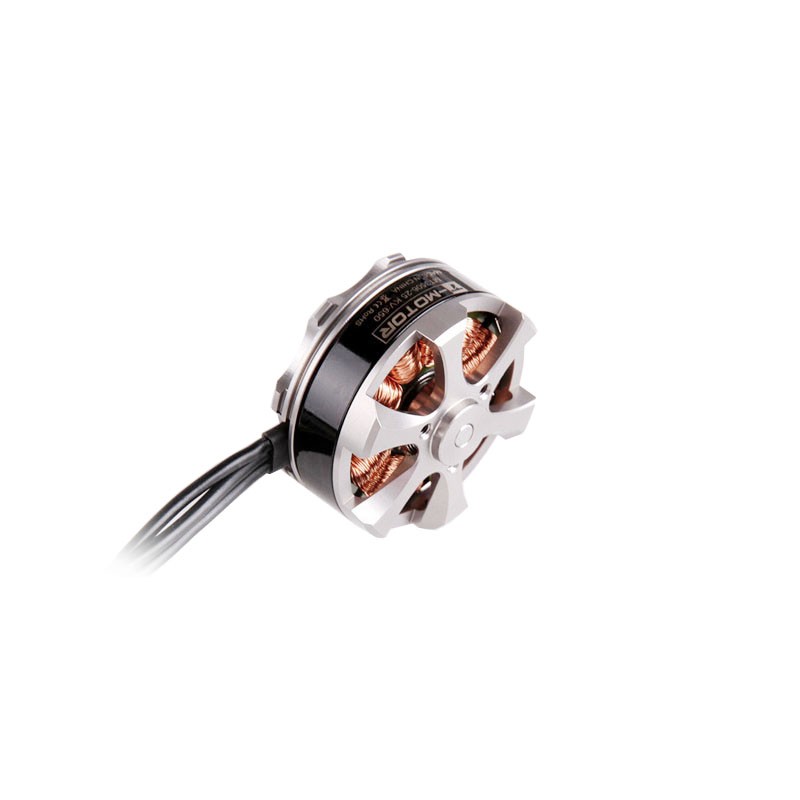

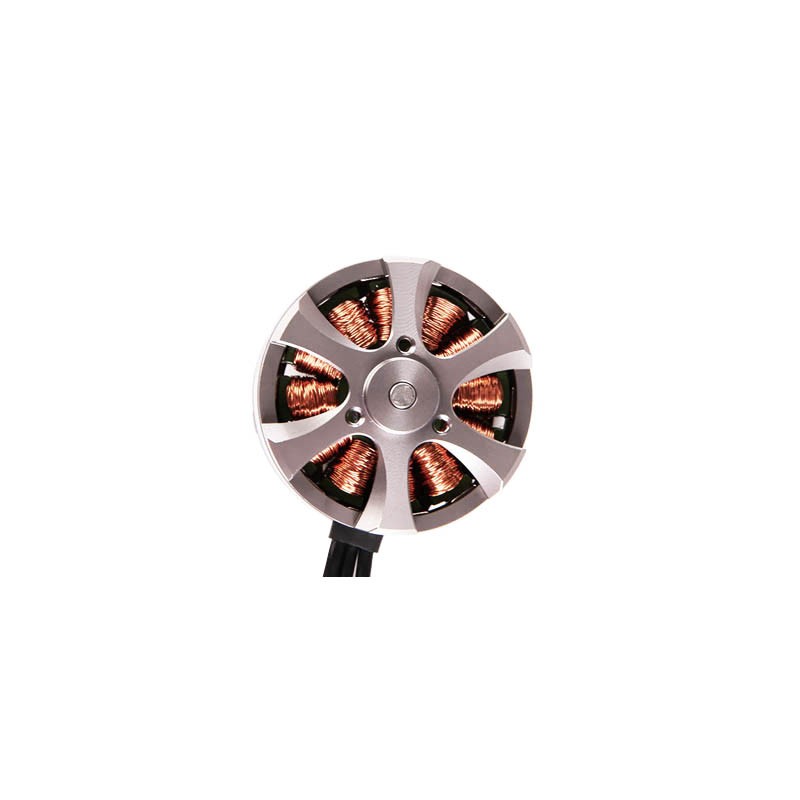

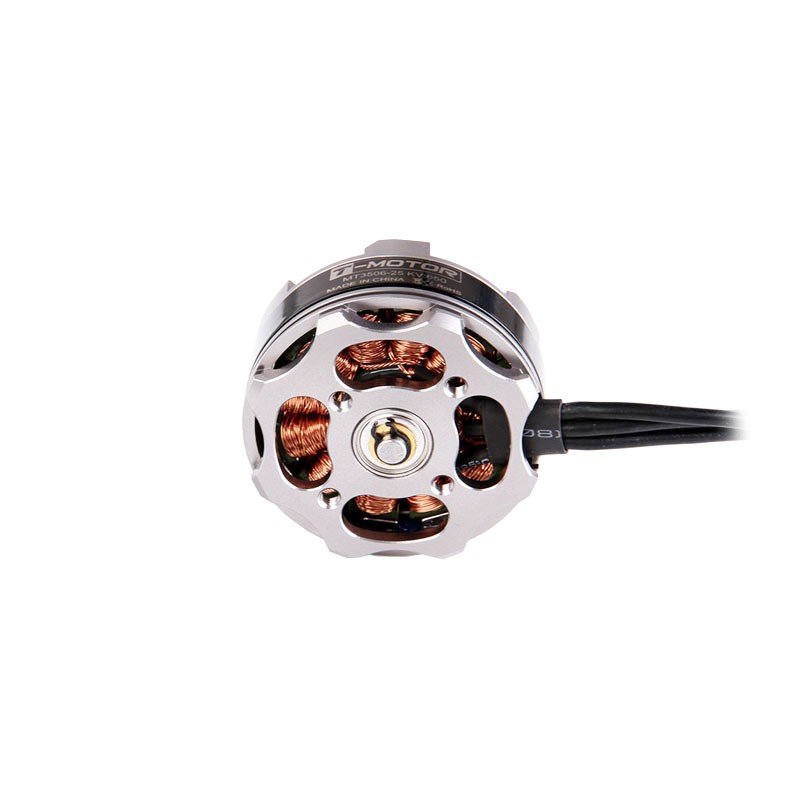

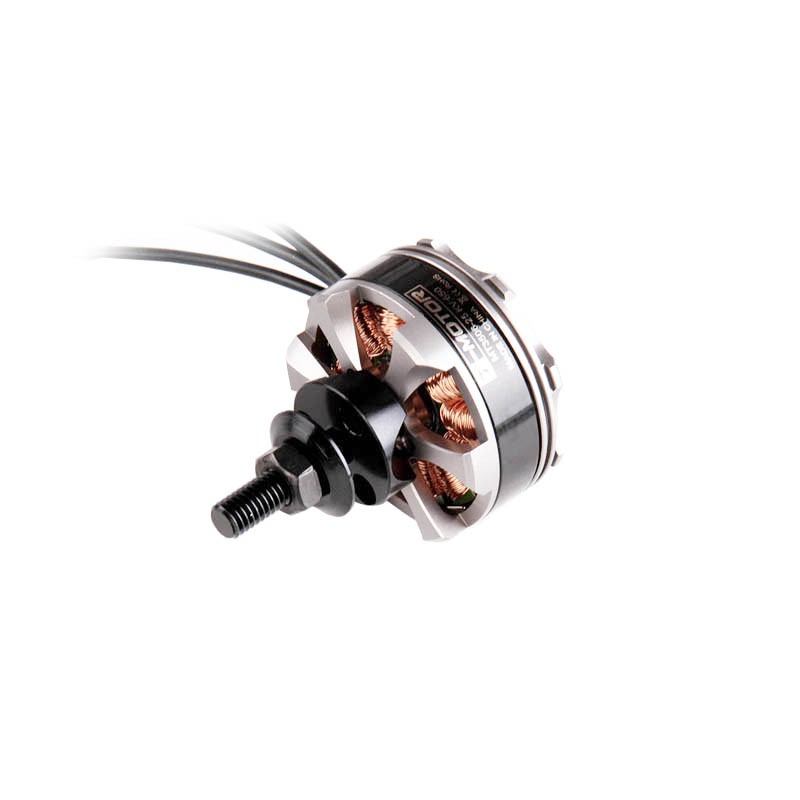

T-Motor MT3506-25 650KV Brushless Motor

New product

The Tiger T-Motor MT-3506-25 650kv Multi Rotor Motor is a Powerful Pancake Motor Specifically Designed for Multi-Rotors

More details

$60.00 tax excl.

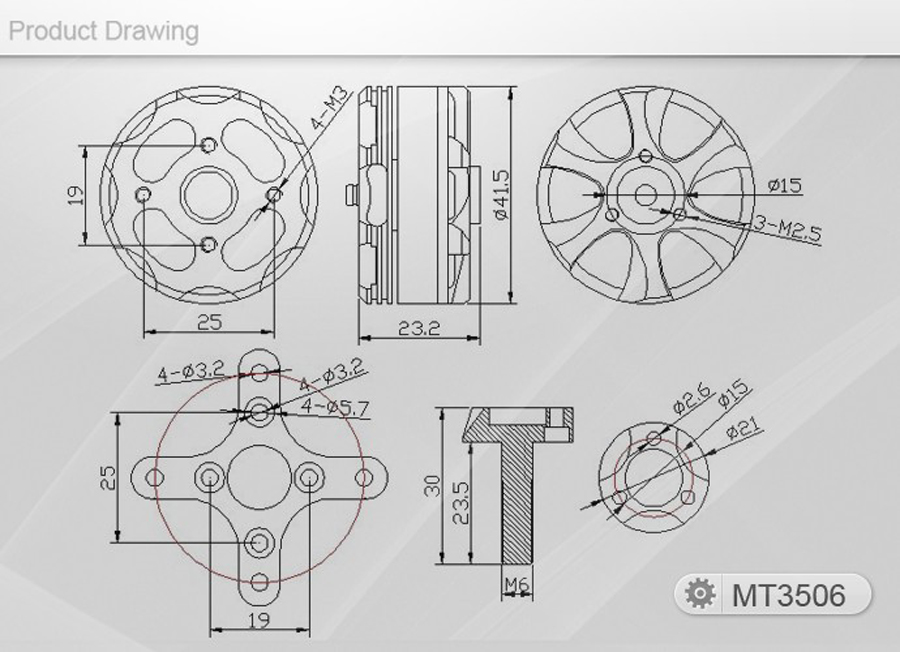

  • T-Motor MT3506-25 650KV.jpg


    Specifications:

    KV : 650
    Configuration : 12N14P
    Stator Diameter : 35mm
    Stator Length : 6mm
    Shaft Diameter : 4.0mm
    Motor Dimensions(Dia.*Len) : Φ41.5×23.2mm
    Weight (g) : 70g
    ldle current(10)@10v(A : 0.2A
    No.of Cells(Lipo) : 3-4S
    Max Continuous current(A)180S : 14.5A
    Max Continuous Power(W)180S : 260W
    Max. Efficiency current : (4-9A)>84%
    Internal Resistance : 155mΩ

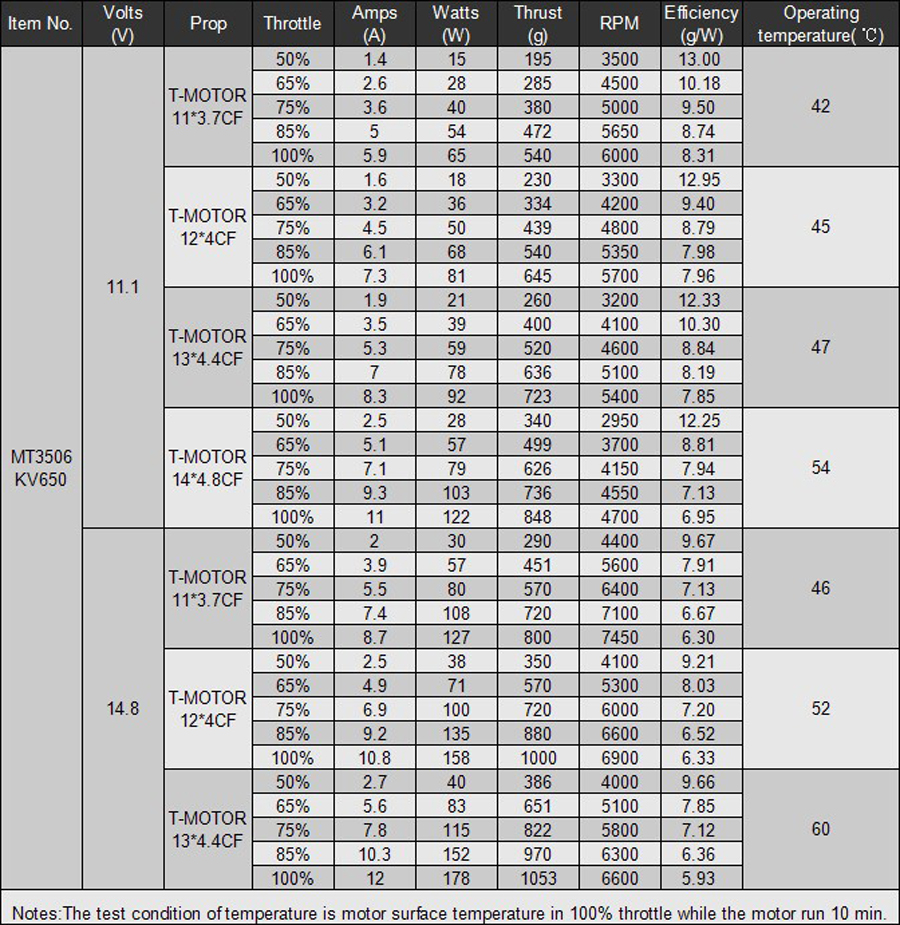

    T-Motor MT3506-25 650KV-2.jpg

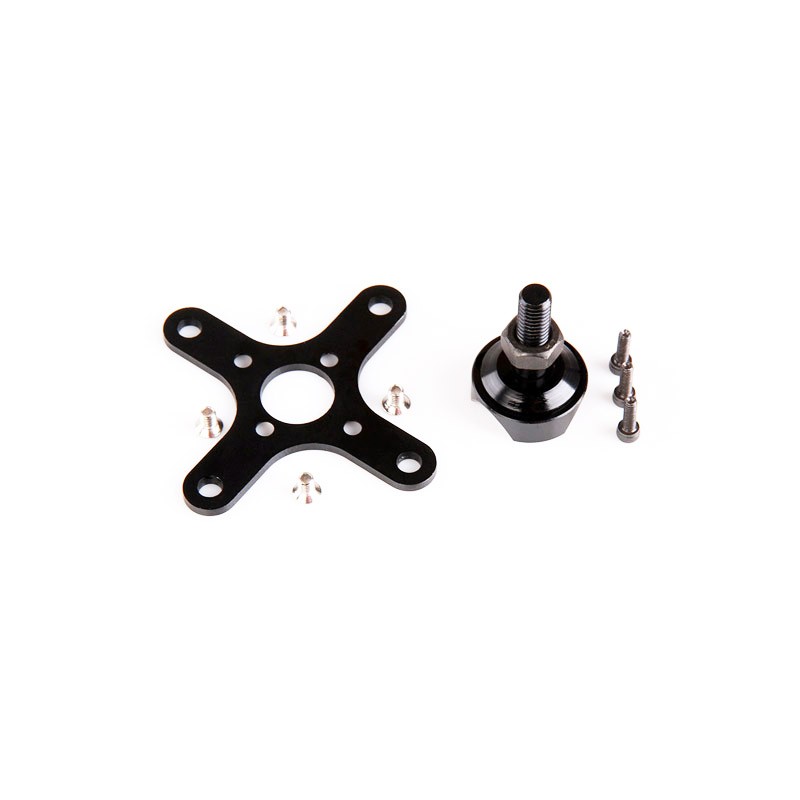

Accessories
