O.S. OMA-5010-810 Brushless Motor (New) for Skywalker X8

New product

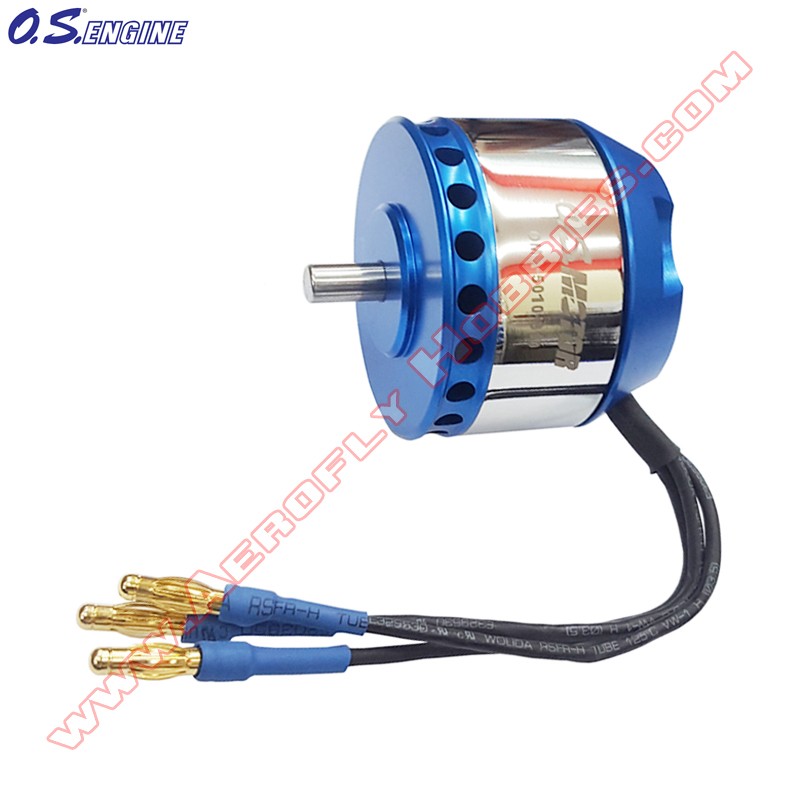

This is New OMA 5010-810 Brushless Electric Motor from O.S. Motors for Skywalker X8.

More details

$180.00 tax excl.

  • Features:

    For airplanes using a four-stroke .52 cu in (8.5 cc) engine
    Centrifugal fan design with angled ventilation holes draws air
    through the motor and across the windings and magnets for improved

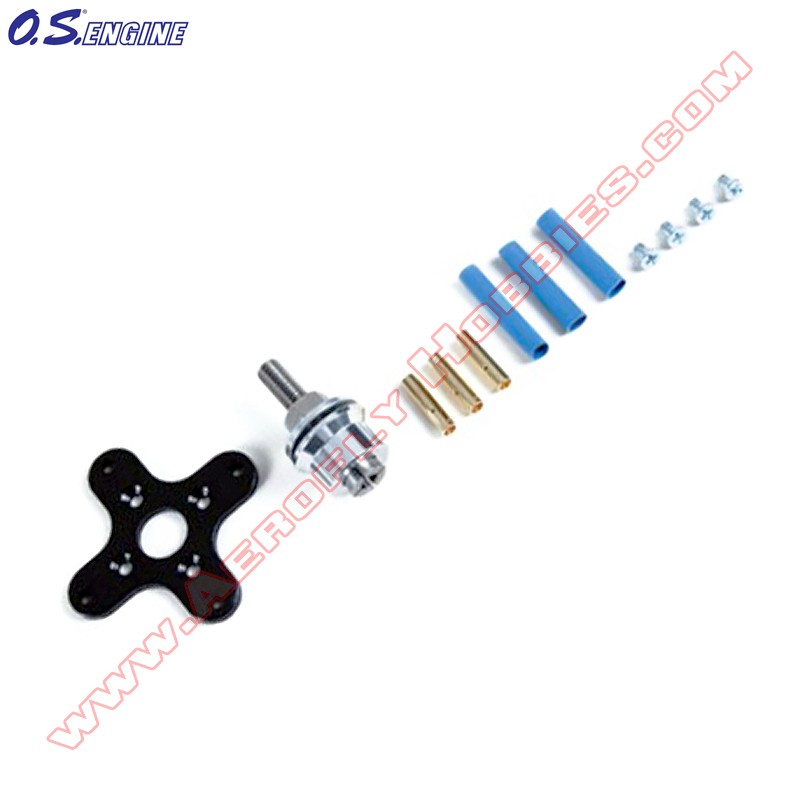

    .52 Brushless Electric Motor with Backplate, four Phillips Head
    Mounting Screws, 4mm Gold Plated Male Plugs attached to leads,
    three 4mm Female Plugs with Shrink Wrap, Prop Adapter and
    Instruction Sheet


    90A brushless ESC


    • Rated Power: 700W
    • Rated Voltage: 14.8V
    • Rated Current: 45A
    • Maximum Current (10 sec): 80A
    • No Load Current: 1.8A
    • Phase Resistance: 24.5 miliohms
    • Maximum Efficiency: 85%
    • kV: 810
    • Poles: 14
    • Shaft Diameter: 0.24" (6mm)
    • Shaft Length: 0.46" (11.7mm)
    • Weight: 8.3oz (234g)
    • Lead Wire Length: 4.3" (110mm)
    • Length of Motor Can to Backplate: 1.7" (42.5)
    • Diameter of Motor Can: 1.98" (50mm)
    • Length/rear of Motor Can to Prop Washer: 2.3" (58mm)
    • Prop Washer Diameter: 1.06" (27mm)
    • Thickness of Motor Mount: 0.20" (5mm)
    • Width of Motor Mount: 2.7" (68mm)
    • Height of Motor Mount: 2.7" (68mm)

    Performance for this motor with different props and LiPo cells is as follows (all data with 80A ESC):

    Prop Size Current LiPo Cells Wattage Thrust RPM
    12 x 8E 51A 4S 857W 3.2kg 10,300
    12 x 10E 54A 3S 680W 1.7kg 7.380
    13 x 6.5E 55A 4S 924W 3.7kg 10,150
    13 x 8E 62A 4S 1,042W 3.7kg 9,930
    13 x 10E 78A 4S 1,310W 3.6kg 9,370
    14 x 7E 70A 4S 1,176W 4.0kg 9,650
    14 x 10E 54A 3S 680W 2.7kg 7,380
    15 x 7E 79A 4S 1,327W 3.6kg 7,900
    10 x 5E 42A 3S 529W 1.8kg 12,200
    10 x 7E 53A 3S 668W 2.6kg 11,500
    11 x 5.5E 54A 3S 680W 2.4kg 11,500
    11 x 7E 62A 3S 781W 2.7kg 10,900
    12 x 6E 66A 3S 832W 2.8kg 10,400
    12 x 8E 75A 3S 945W 2.5kg 9,300
