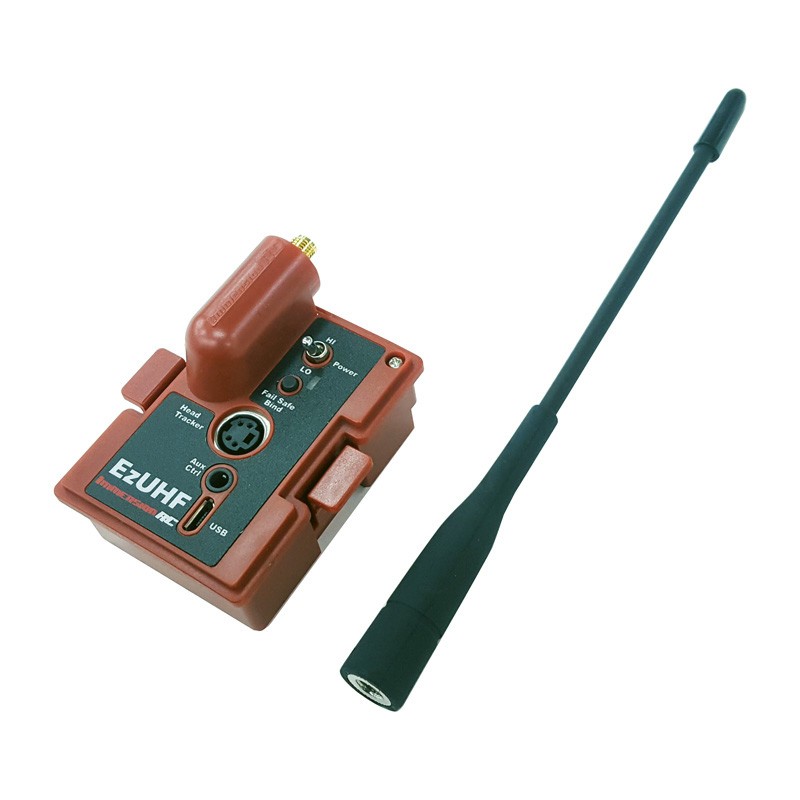

ImmersionRC EzUHF JR Long-Range Transmitter Module Fit Turnigy and Taranis

New product

The modular form of the EzUHF Transmitter, plug and play with several popular R/C transmitters such as JR, Turnigy X9R and Taranis X9D+ .

More details

$120.00 tax excl.

  • The EzUHF transmitter is a true powerhouse with a wealth of connectivity options, broadening the possibilities for every FPV pilot. Head tracking support has now been taken out of the hands of the transmitter and is exclusively handled by the EzUHF transmitter, so any radio can be used with your TrackR2 system.

    The EzUHF module has an input voltage range of 6~13v making it compatible with almost all available radios. The EzUHF Module also features a power jack which will accept a 3S LiPoly battery directly, so no internal transmitter modification will be required.For Futaba systems using a 9.6V battery or 3S LiPo the EzUHF transmitter can be powered directly from it with just a single cable. The battery voltage, either from the external battery, or provided by the radio is monitored and an audible alarm will sound when your battery gets low.

    The EzUHF transmitter also features an easy access power boost switch, which increases the power if you happen to find yourself in a tight spot and need to regain control.


    • Reliable FHSS Link (Frequency Hopping, Spread Spectrum)
    • 433MHz/70cm Ham band operation
    • GFSK modulation
    • Standard SMA antenna connector, compatibility with 70cm antennas
    • Standard USB port for firmware upgrades, and system configuration
    • Single pushbutton learning of failsafe positions
    • Binding function, which allows binding Single Tx->Rx, Multi Tx->Rx, and Single Tx->Multi Rx
    • Compatible with all EzUHF receivers


    • Output Power: 500mW (high), 200mW (low)
    • DC Power Input: 6~13v
    • Current Consumption: 250mA 12V in high power mode, 85mA 12V in low power
    • Head-tracker Input: 6~13v
    • Channel Count: 12
    • Antenna Connector: SMA
    • Frequency Range: 430MHz-> 440MHz, with a UK (459MHz option)
    • Frequency Bands: 431~433, 433~435, 435~437, 436~438, 430~430 EH Spread
    • Spectrum: FHSS, 20 slots from a possible 40, PRBS sequence EH = extreme hopping.
