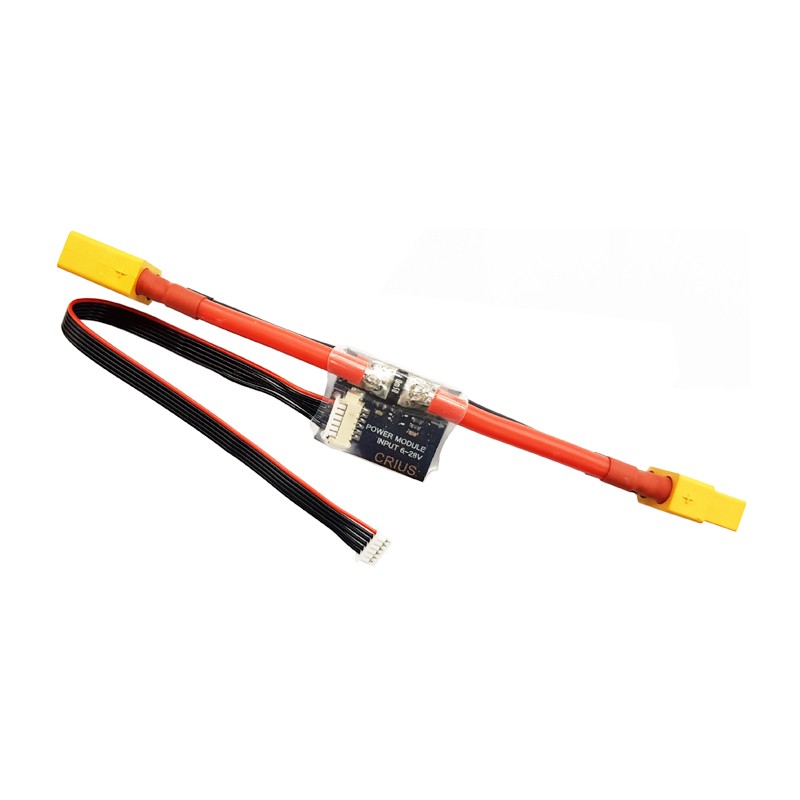

CRIUS Power Module 28V 90A for Pixhawk APM2.8 APM2.6 APM Flight Controller

New product

$15.00 tax excl.

  • Power Module is a simple way of providing your APM/Arduflyer with clean power  from a LiPo battery as well as current consumption and battery voltage  measurements, all through a 6P cable. The on-board switching regulator outputs  5.3V and a maximum of 3A from up to a 7S LiPo battery.

    Note: The Power Module is only designed to power APM/Arduflyer, a RC receiver  and accessories (GPS, Radio telemetry). It is not designed to power servos. Use  your aircraft's own ESC/BEC for that.

    Features:

    • Input voltage: 6~28V (support 30V)
    • Max current sensing: 90A
    • Voltage and current measurement configured for 5V ADC
    • Switching regulator outputs 5.3V±0.1V and 3A max
    • 6P molex cable plugs directly to APM/Arduflyer 2.5's 'PM' connector
    • Dimension(mm): 25 x 21 x 9
    • Weight(g): 17(include all wire)


    Package content (
    Soldered, as picture shows)

    • Power Module x 1
